X-BULL Electric Winch 5000LBS 12V 15.2M Synthetic Rope Wireless ATV UTV 4WD Boat

For You is Super

The X-BULL 5000lbs is one of our new X-BULL high-efficiency winches for all offroad and life-loving customers in 2021. Over the past few years, we docu ment the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one. Notably, the X-BULL 5000lbs uses the stronger 500A relays on the market. We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. XX-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.

What do you need to focus on most?

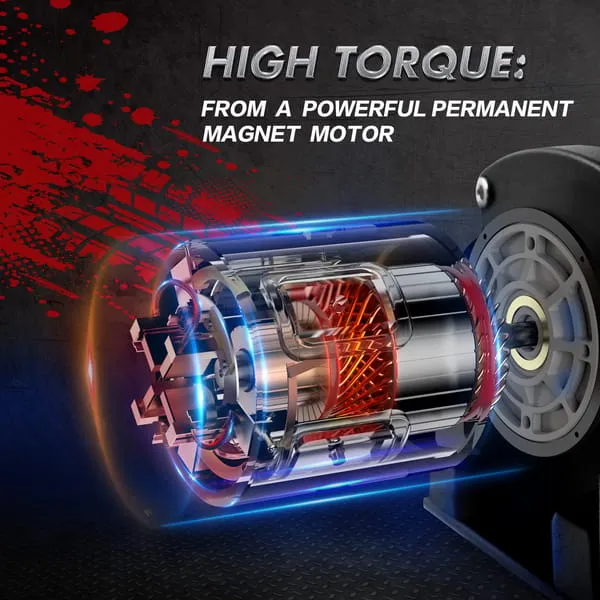

Motor

Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

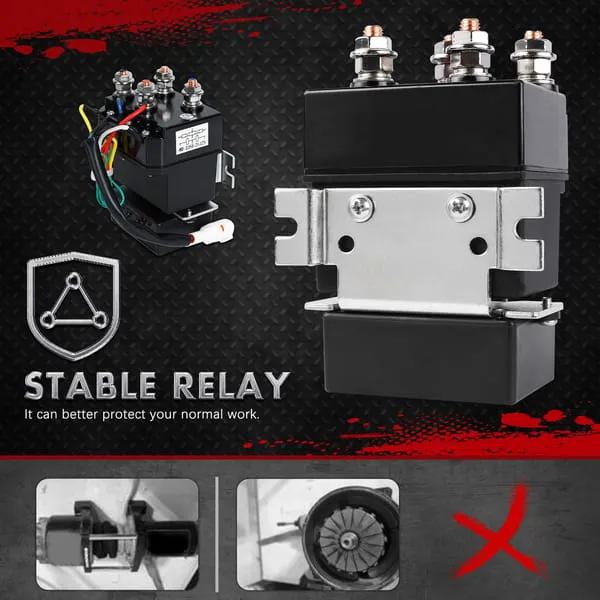

Winch Solenoid Relay

Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches,not necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.

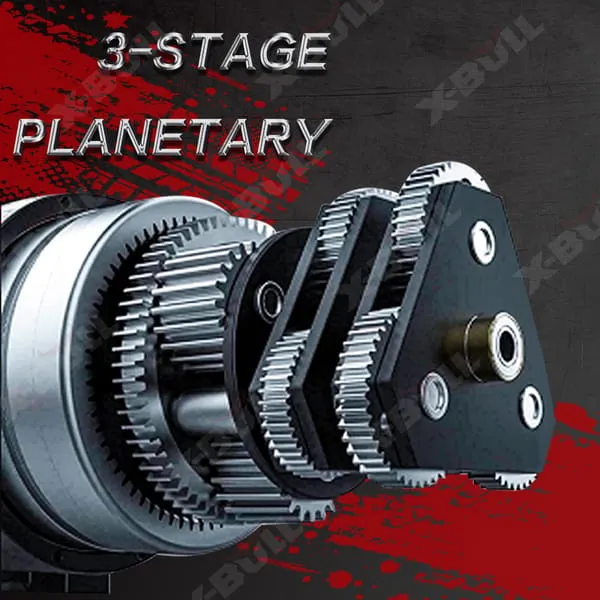

3-Stage Planetary

The real 3-Stage Planetary enables differential, deceleration (growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration (growth).

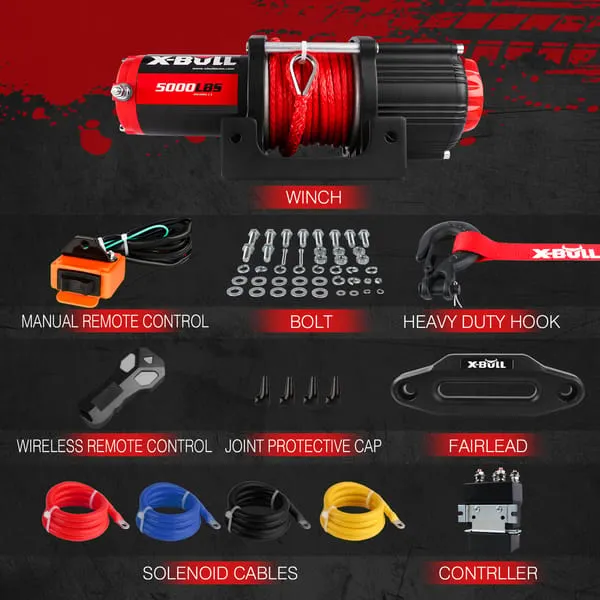

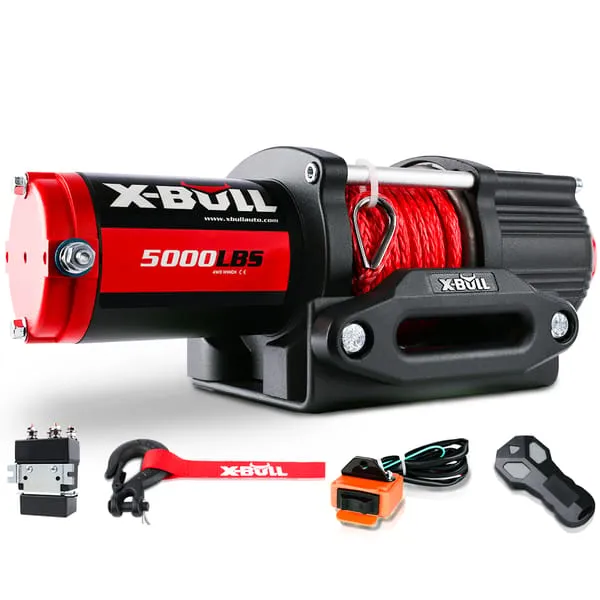

In The Box

5000LBS Winch x1

Wireless Remote Control x1

User Manual x1

Aluminium Hawse Fairlead x1

Joint Protective cap x4

Controller(solenoid+receiver)

Winch Mounting Plate x1

Solenoid Cables x4

Set of Bolts x1

Clevis Hook x1

Hand Remote Control x1

Specifications

Rated Single Line Pull: 5000lb.(2268kg)

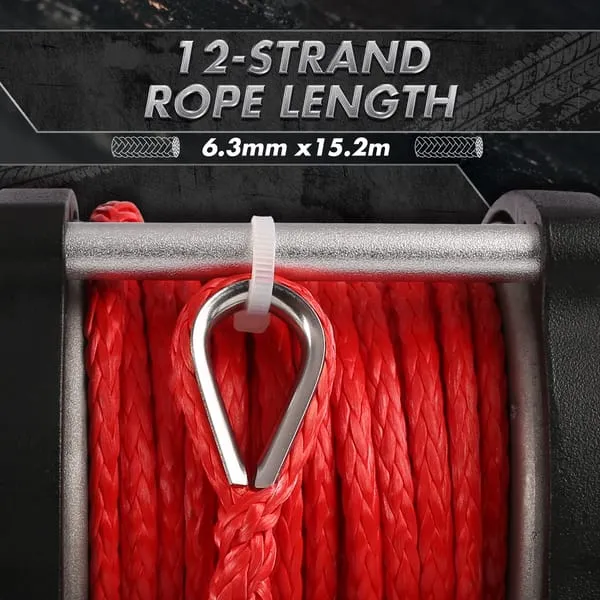

Synthetic Rope: 1/4'' x 50' (6.3mm x 15.2m)

Winch Certification: CE

Battery: 12VDC, Minimum 12Ah

Duty Cycle Rating: 5% (45 sec at Max Rated Load: 14 min, 15 sec Rest)

Overall Dimensions(L X D X H): 15.8'' X 4.6'' X 4.7'' (400 X 116 X 119mm)

Solenoid: 6 gauge, 3'(0.92m) longApplication:ATV/UTV/BOAT

Mounting Pattern: 3'' x 6.6'' (76.2mm x 167.6mm)

Gear train: 3-Stage Planetary

Adaptor Plate: 2x G8, M8-1.25 X 25mm

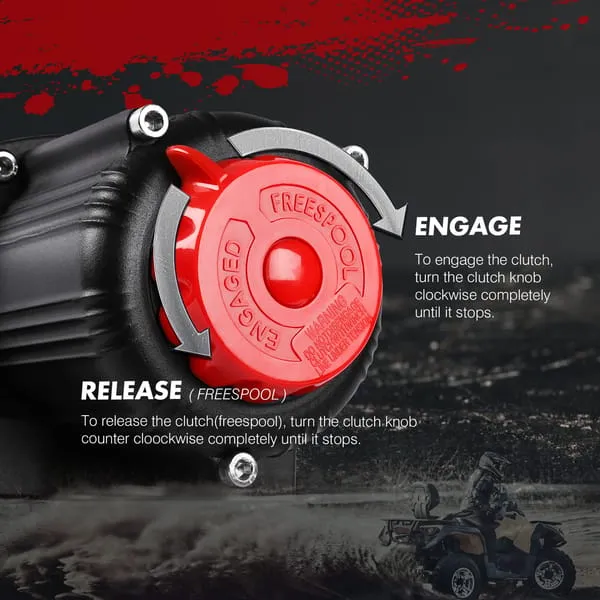

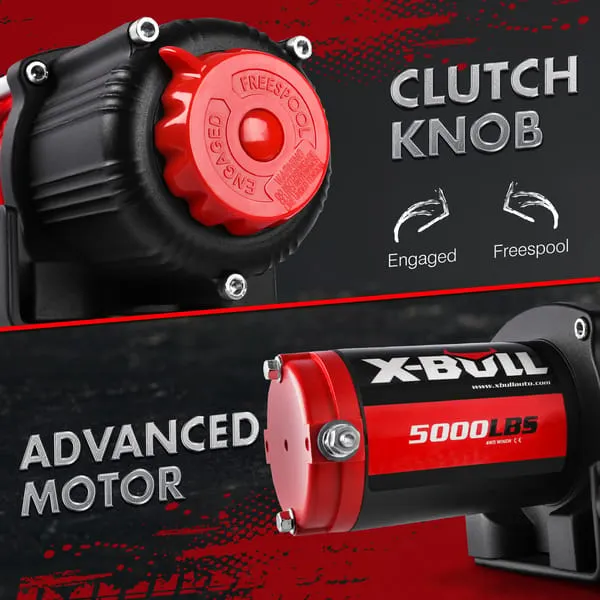

Freespool: Cam Activated

Fairlead: 2x G8, M8-1.25 X 20mm

Hook:1/4" Clevis, with Spring-loaded Safety Latch

Sound Rating: 85 dB

Weight: 26.45lb. (12kg.)

IP Rating: IP 66-Winch and Controls(except remote switch, resistant to powerful water jets??
