FEATURES:

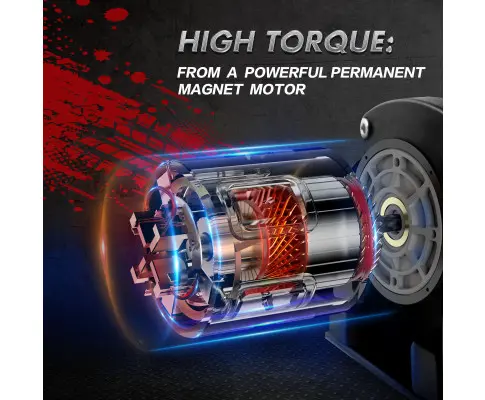

1. MOTOR

Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

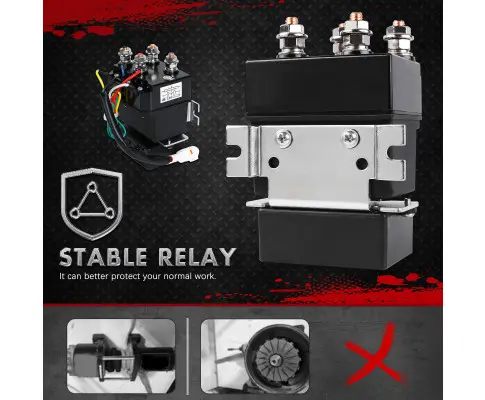

2. WINCH SOLENOID RELAY

Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches, not necessarily an overload protector if your winch has a perfect relay. The X-BULL 500A relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.

3. THREE-STAGE PLANETARY

The real 3-Stage Planetary enables differential, deceleration(growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration(growth).

4. All-STEEL SHELL

The all-steel shell can protect the winch well, and the black frosted spray paint will not rust.

Diamond-shaped design is more conductive to the heat dissipation of the gearbox to ensure the long operation of the winch.

When great becomes legend?

The Steel series by X-BULL Winch brings innovation and a radical new design to the successful 5000lb platform. Decades of winch design experience have been utillsed to produce one of the finest winches on the market.

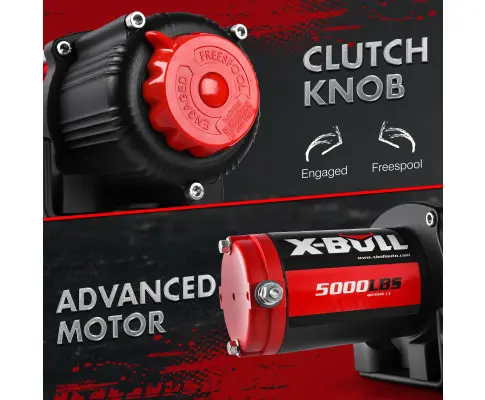

Under the skin we've kept the same features known and loved by our customers;super smooth three stage planetary gears,2-ways free spool clutch,new style wireless plus wired big-grip remote and a host of accessories.

SPECIFICATION:

Brand:X-BULL

Rated Line Pull: 5000lbs(2268kg)

Motor: 12VDC/1.5HP Permanent magnet

Gear Redustion Ratio:198:1

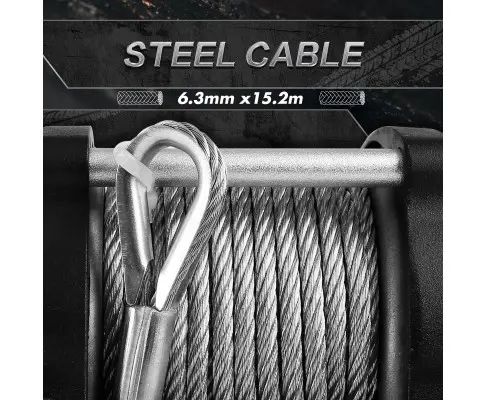

Cable Length: φ6.3mm*15.2m

Control: Wired/Wireless Control

Braking Action: Mechanical Brake

Fairlead: 4-Way Roller Fairlead

Gear train: 3-Stage Planetary

Type: Electric Winch

Weight: 12kg

Dimensions: 330mm*117mm*120mm

IN THE BOX:

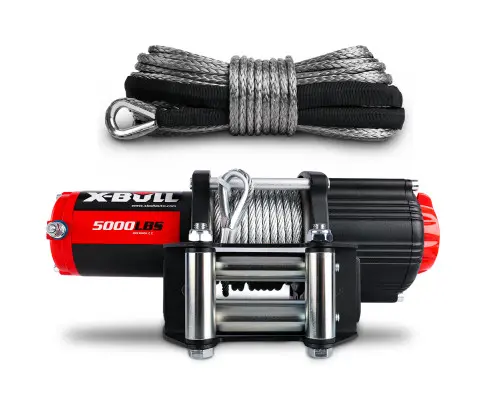

1*5000LBS Winch

1*4-Way Roller Fairlead

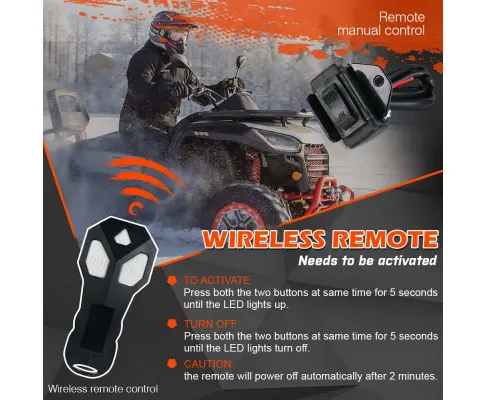

1*Wireless Remote Control

1*Hand Remote Control

1*Controller(solenoid + receiver)

1*Winch Mounting Plate

4*Solenoid Cables

1*Set of Bolts

1*Clevis Hook

1*User Manual

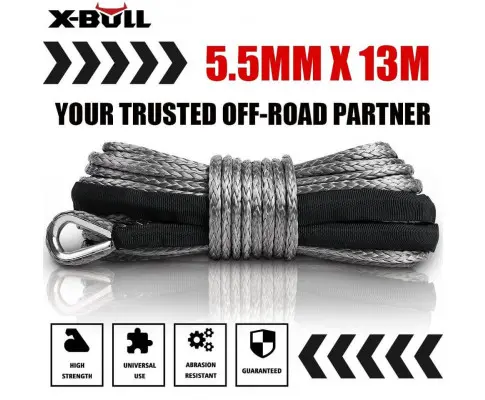

1*5.5MMX13M Synthetic Rope
