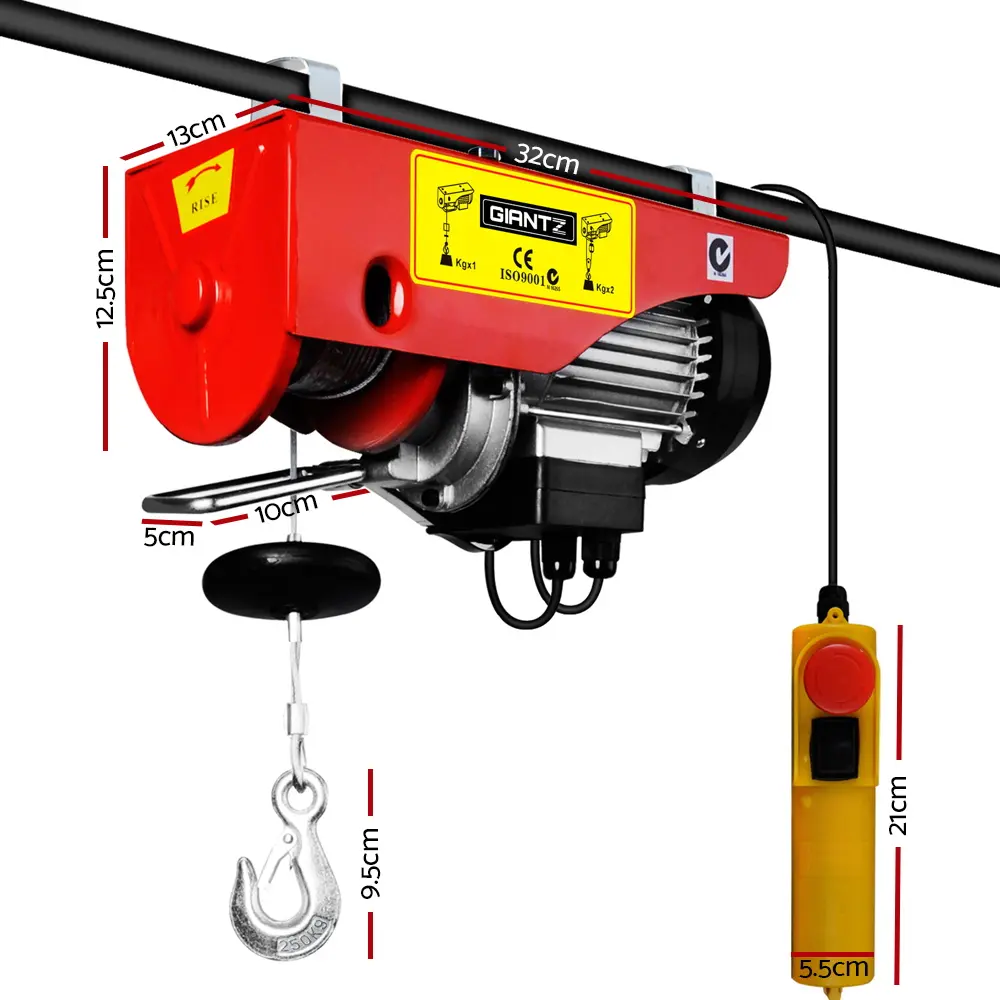

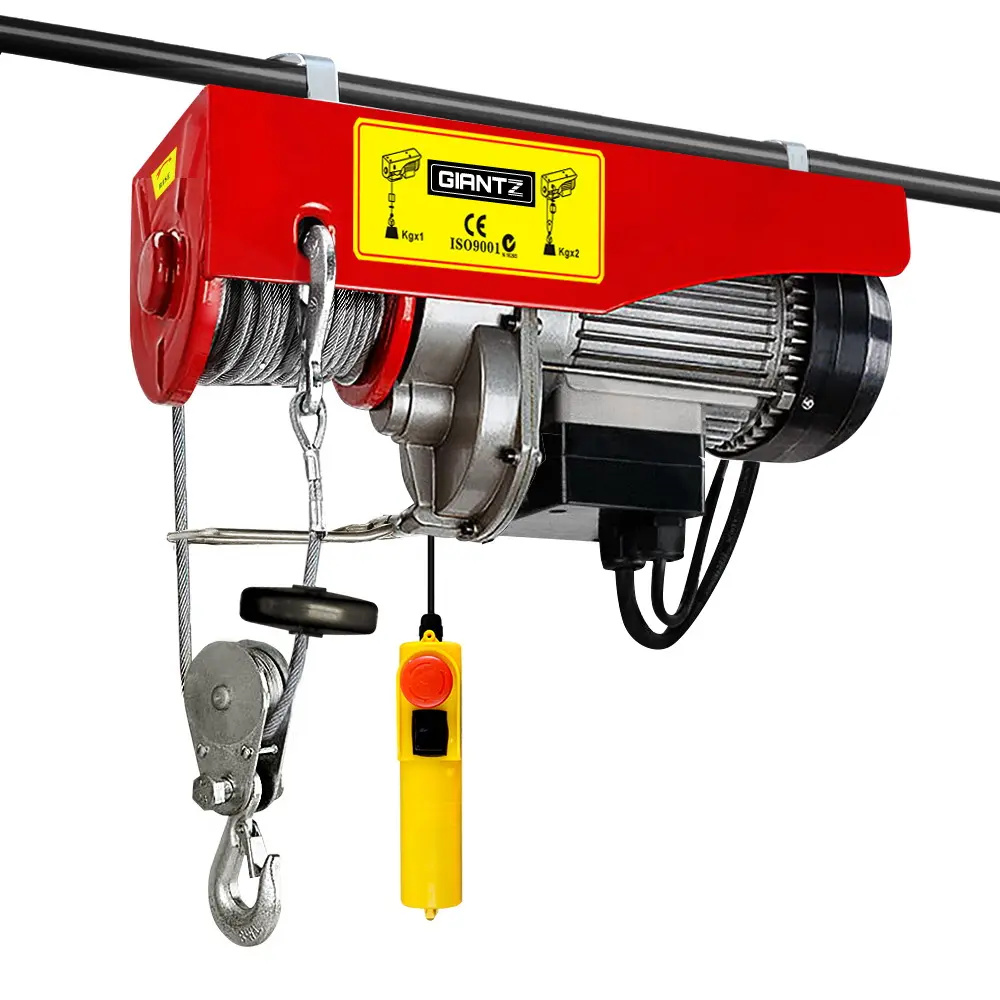

125/250kg 510 W Electric Hoist Winch

Powered by a 510W single-phase capacitance motor, the hoist comprises a 18m high tensile

cable, a rigid 95cm forced metal hook and an easy control with emergency stop switch.

Features

* Powered by lateral-magnetic single-phase capacitance motor

* Emergency instant stop switch

* 7x19 robust wire rope structure

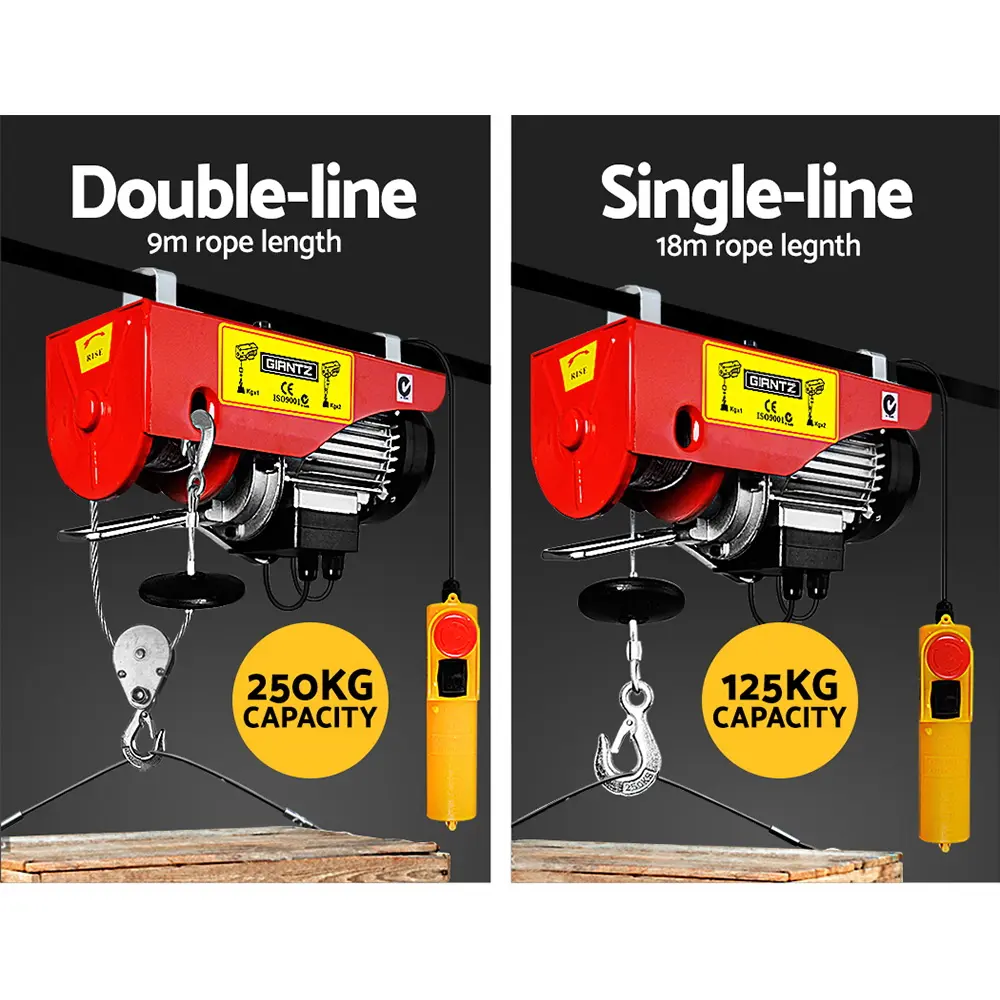

* Single and double rope lifting

* Overload protection function

* 18 metres high tensile cable

* CE/GS/RoHS/EMC approval

* Voltage:AC 240V/50Hz

* Moter power: 510W

* Single rope capacity:125kg

* Double rope capacity:250kg

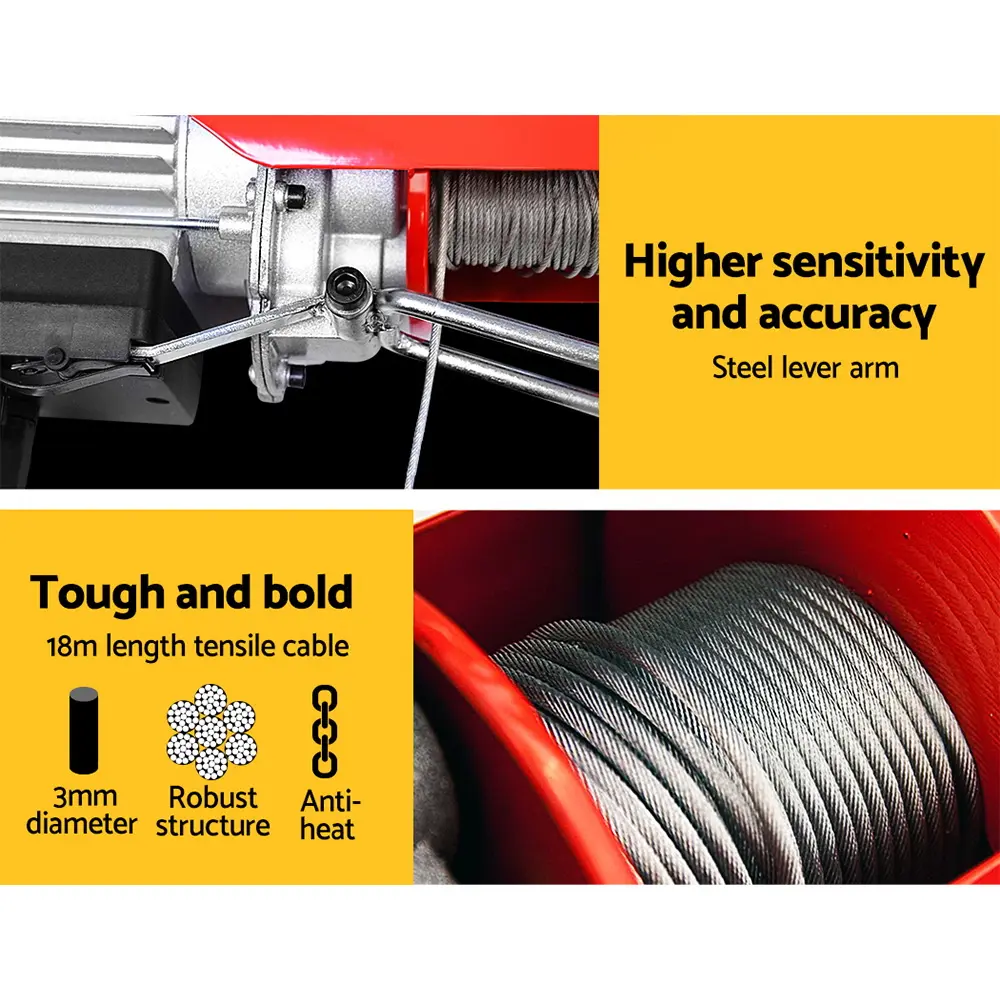

* Rope type: 7x19 structure wire rope

* Rope diameter: 3mm

* Lifting speed: Single rope - 10 metres/min, Double rope - 5 metres/min

* Lifting height: Single rope - 18m, Double rope - 7.5m

* Weight: 11kg

* Length of power cable: 0.8m

* Length of control switch cable:

Package Contents

1 x Electric Hoist

1 x User Manual

EH-15M-PA250A
