Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

Built-in BMS protection for over-charge, over discharge, over current and over temperature.

LCD screen display showing the battery remaining

Free of maintenance

Internal cell balancing.

Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

Can be charged using most standard lead-acid charges (set).

Wider temperature range:-20℃~60℃.

Support for Series application expansion (up to 51.2V) and two in parallels.

Specifications:

Life Cycles: 2000 with 100% DOD, 3500 with 80% DOD, and 6500 with 50% DOD

Power Capacity: 384Wh

Nominal Voltage: 12.8V

Nominal Capacity: 30Ah@0.2C

Max. Charging Voltage: 14.0-14.6V

Charging Current: 15A

Max. Charging Current: 30A

Discharging Current: 15A

Max. Continuous Current: 20A

Charge Temperature: 0℃-45℃

Discharge Temperature: -20℃ to 60℃

Water Dust Resistance: IP55

Dimension: L223x W95x H175mm

Weight: 3.5kg

Terminal: M6

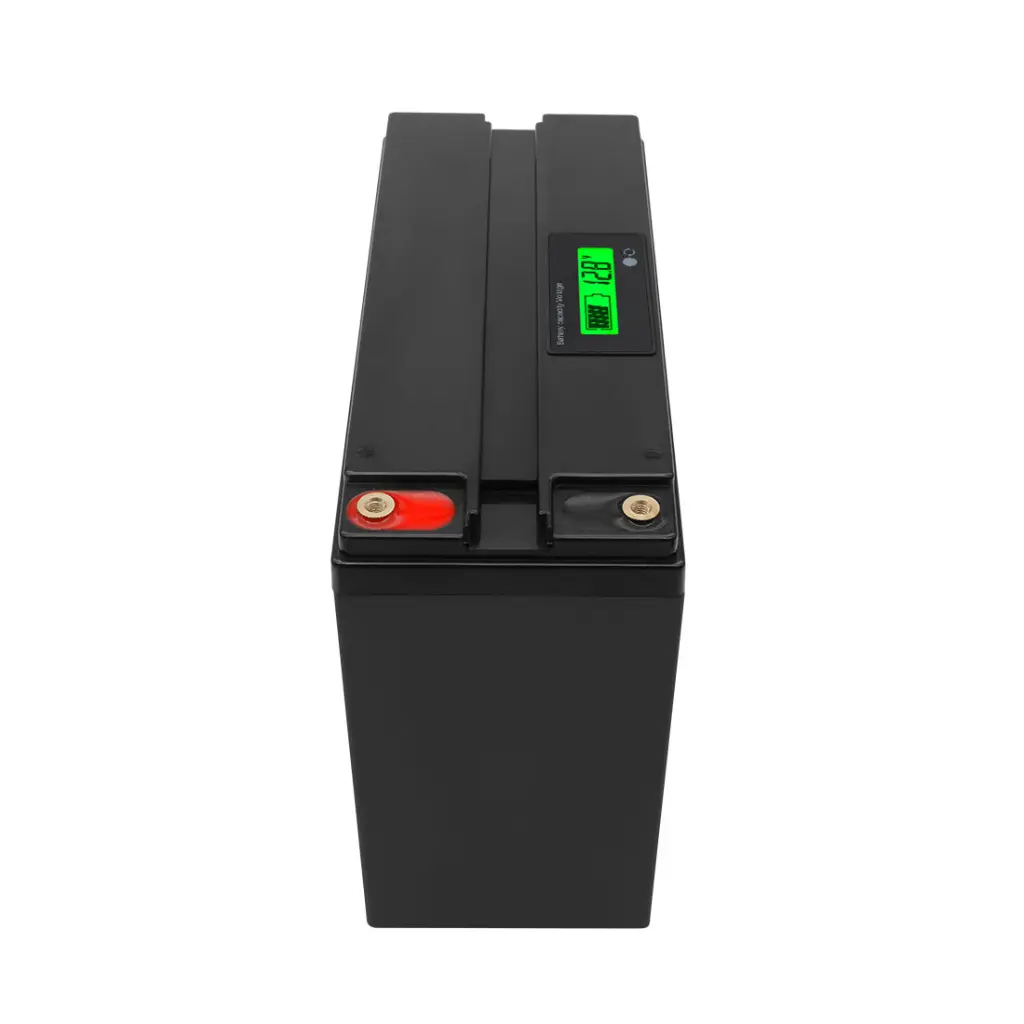

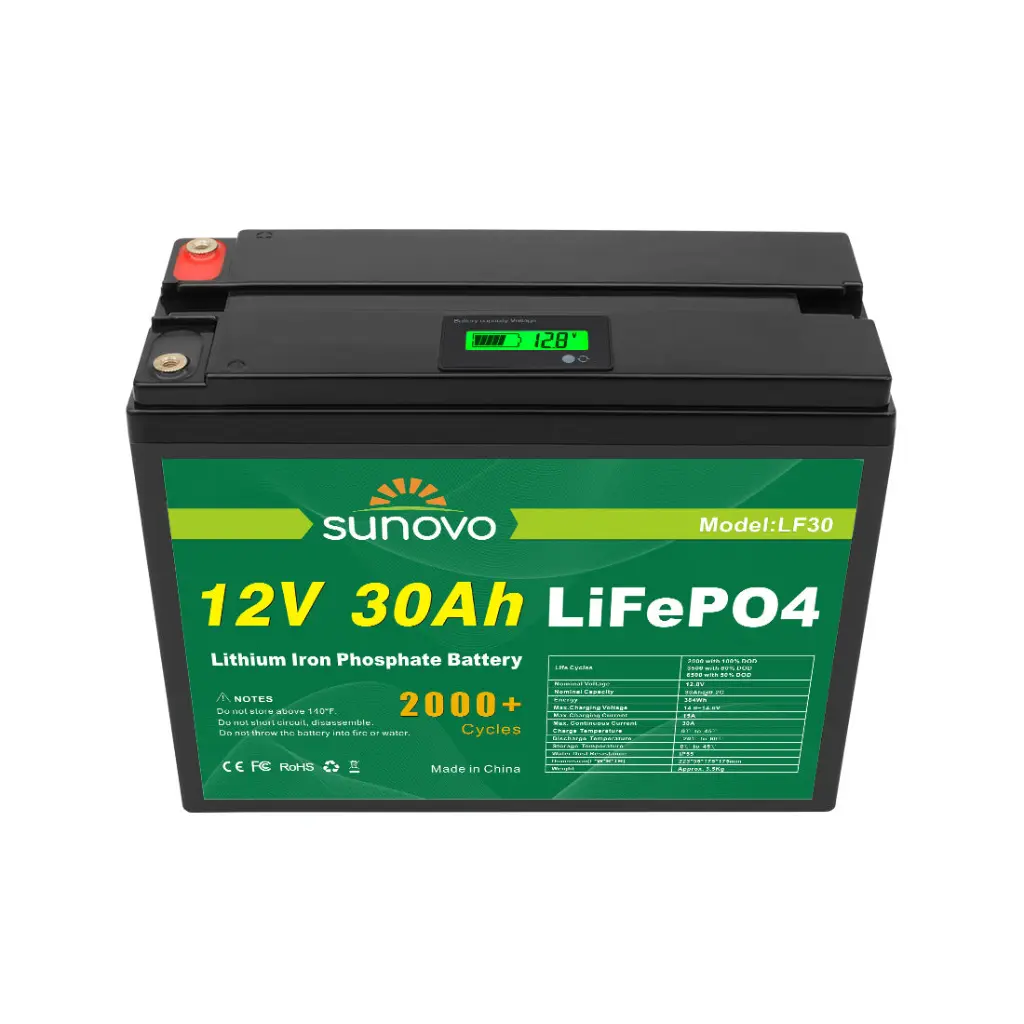

V1060-LF30
