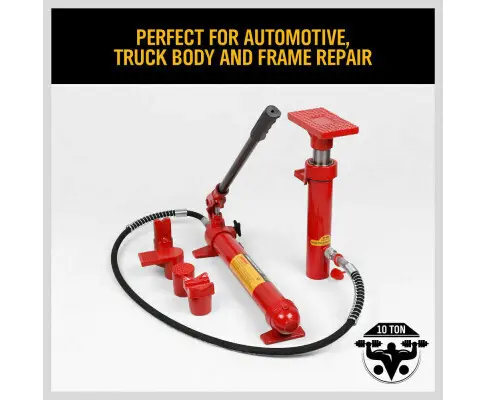

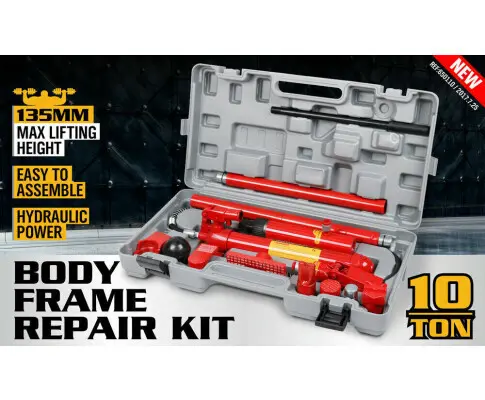

10 Ton Porta Power Kit Hydraulic Panel Beating Car Body Dent Frame Repair Tool

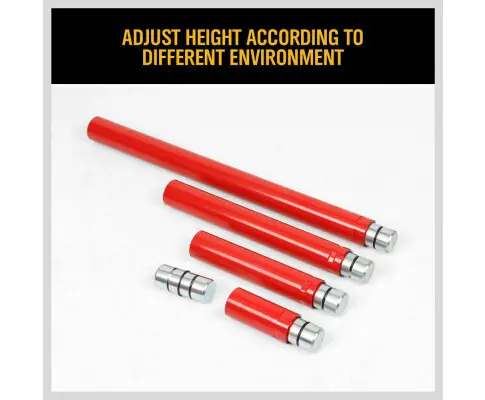

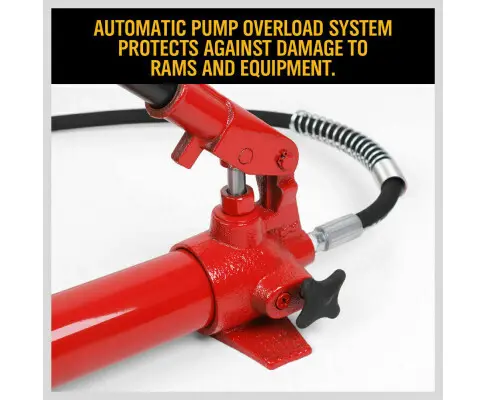

1 x Hydraulic Hand Pump / 1 x Hose / 1 x 10-ton Ram / 1 x Spreader Ram / 3 x Extension Tubes / 1 x Male connector

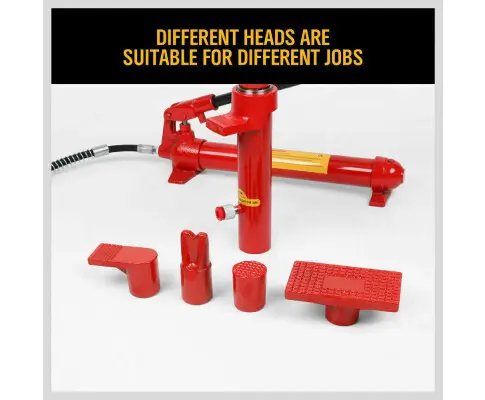

1 x Flat base / 1 x 90 Degree V Base / 1 x Wedge Head / 1 x Spreader Plunger Toe / 1 x Spreader Ram Toe

1 x Flex Head / 1 x Serrated Saddle / 1 x Carry case / 1 x User Manual

Item Specifications:Color: red

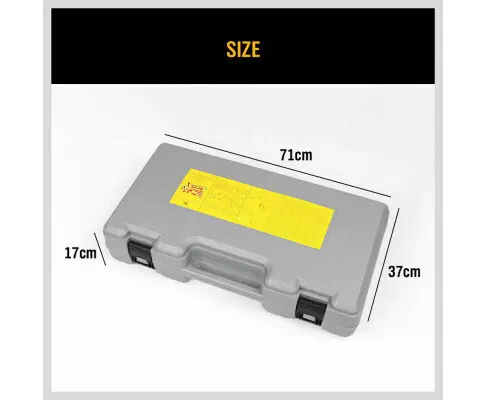

Size:73cm*40cm*18cm

N.W.:29kg

G.W.:31kg

Load Capacity: 10 tons

Jack Power Type: Hydraulic

Max Lifting Height: 130 mm

Cylinder

Min Height:330 mm

Working Pressure: 62 Mpa

Oil Be Filled: 500 g

For Load:Maximum load can not exceed the rated capacity.

The load can not exceed the half of the capacity when all tubes used.

The extension of the piston can not exceed the stroke.

For Safety:Working oil:No 10

Check the level of oil,if it is not sufficient,please add the same hydraulic oil.

After using,close the valve with the cover,to keep the oil free from the dust and dirt.

Before lifting,adjust the jack slowly to make the load coaxial with resnect to jack.
